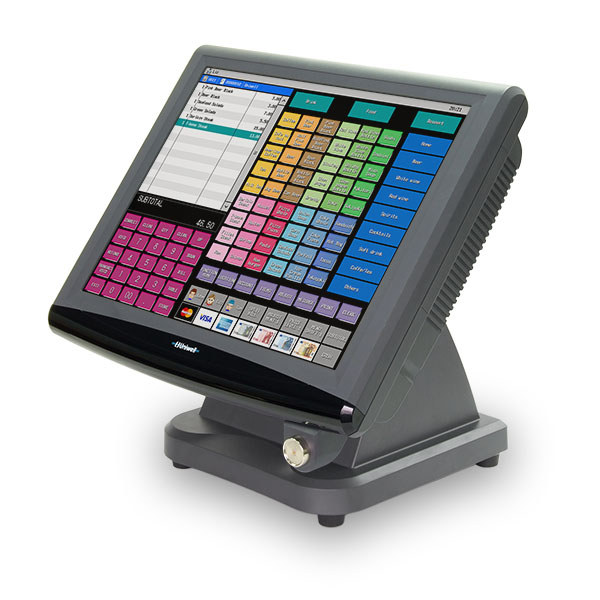

HX-4000, more powerful than before

With the features/capabilities of PC-POS architecture, "Hybrid" HX-4000 is your first answer because much more than just embedded system basing upon over 35 years of trust and experience. Feel the innovation in technology; the HX-4000 is a new generation of POS terminal that is combination of the advantage of Embedded POS and PC POS technology.

Proprietary software and hardware with solid-state technology (No moving parts, No Hard Disk, No fan) offers reliability and stability of Embedded system.

As advantages of Embedded POS, HX-4000 offers speedy operation as well as instant power on/off without waiting for some minutes for OS to boot/finish, Robust system secure from virus attack and hacking, No aged deterioration of machine performance - Everlasting quick and light performance as good as new, swift and stress-free support by Remote Access/Remote Maintenance function.

HX-4000 (Discontinued) Brochure

pdf opens in new tab

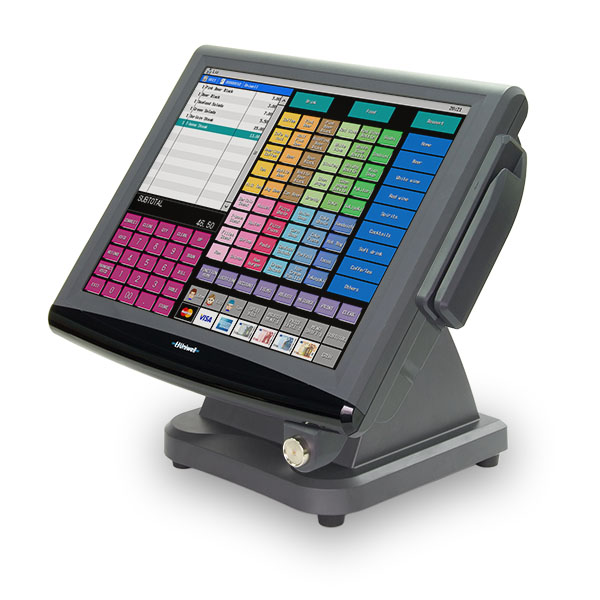

HX-4000 with Card Reader & iButton (Option)

HX-4000 (Discontinued) Features

Hardware features
15" true-flat touch screen display with enhanced waterproof performance
Touch screen with superior durability
Graphic LCD Customer Display support
More Internal Memory
CashGuard interface (cash recycle/cash dispenser)
Caller ID interface (telephone ordering system)
Portable storage devices (USB memory etc..)
Table Manage
Table management
Table tracking with floating track capability
Extensive Condiment
Cocking instruction features
Handwritten cocking message
Powerful Kitchen printing facilities
Split bill by item or seat
Checkout bill
Deposit
QSR and fast food
Customized receipt
Extensive Topping
Take out/eat-in system with combo menu
Drive through
Web ordering system
Retail
Various promotion types;
Mix and Match Meal Deal, Coupon, etc.
Stock control
Weight/Price embedded barcode and source marking code
Scalable Item
Customer Royalty
Customer management
Room/Loyalty
Mifare card (RFID card) Customer Loyalty
Others Remote Access/Remote Maintenance
Flexible/Various Report

And more!

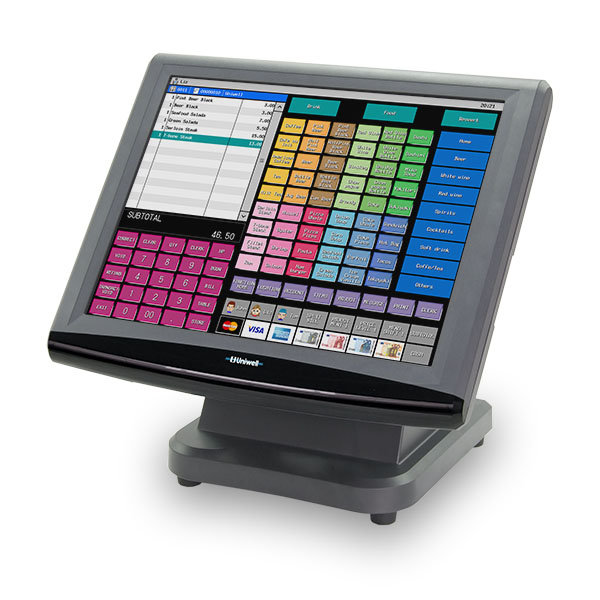

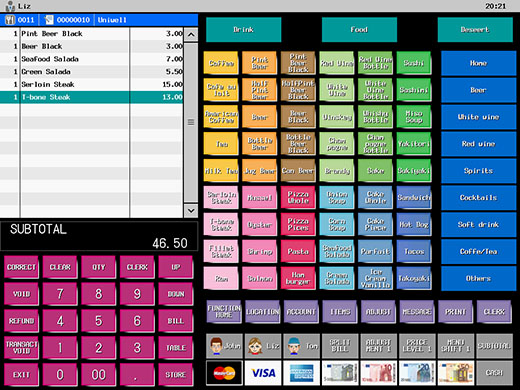

Screen image of HX-4000 software type-03 (Example with some graphical buttons)

Built-in graphical buttons are customizable by BMP file.

Graphical Table Plan: Different layout is available for up to 8 locations.

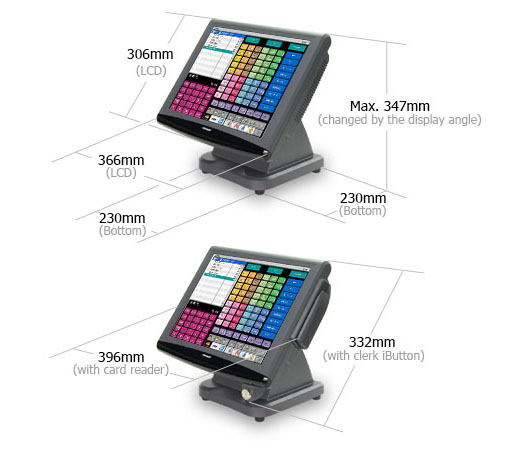

Compact & small footprint

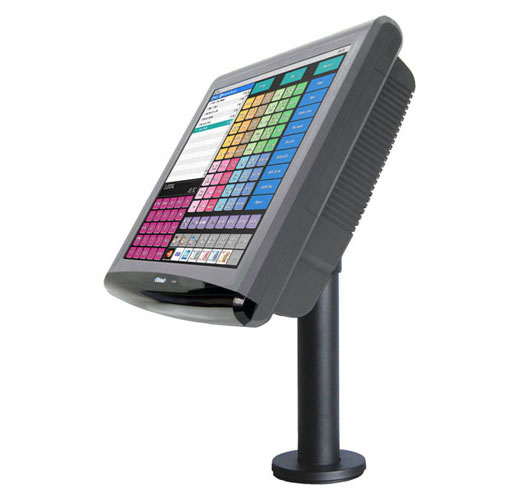

Versatile mounting options: counter or pole (dealer option). <br />
(HX-4000 has VESA Mounting Interface Standard MIS-D75, 75 mm X 75 mm, M4)

Versatile mounting options: counter or pole (dealer option).
(HX-4000 has VESA Mounting Interface Standard MIS-D75, 75 mm X 75 mm, M4)

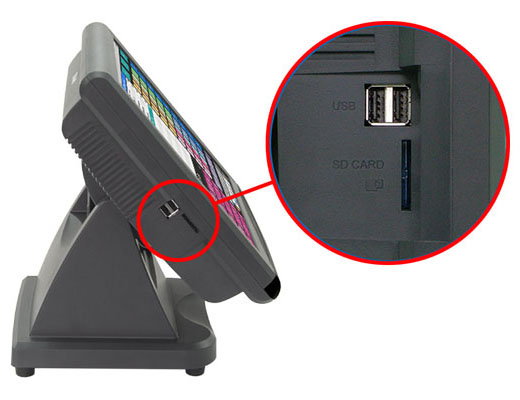

Easy access to USB / SD card slot

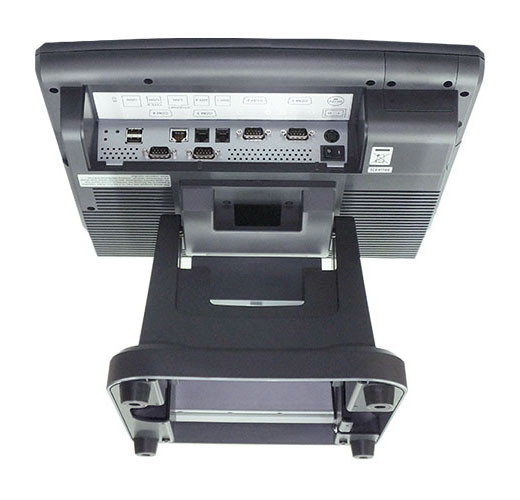

Well positioned I/O ports and smart cabling through the base unit

Interfaces

Port	Cable	For
ETHERNET	LAN	PC (Back office) FTP comm. with PC (Report, Program maintenance, Firmware update) UDP data streaming (Journal data monitoring and analysis) Internet (Head office, Web ordering) Remote access/Remote maintenance Ethernet IRC (max 32units) (Floating Track, IRC report, Program download, etc.) Kitchen/Receipt printer (shared max 20unites) Kitchen video system EFT terminal External loyalty
COM 1-4	RS232C	PC (real time data streaming) Printer (kitchen, receipt, slip) Caller ID EFT terminal NFC terminal 2 line customer display/customer LCD Barcode scanner Scale Journal data transfer Room transfer Coin note recycler Drink dispenser etc.
USB x4	USB	PC keyboard Mouse Barcode scanner USB memory LCD graphic customer display RFID reader Biometric scanner (Finger print reader)
SD card		Data backup Control data and graphic image for ''LCD graphic customer display''
Drawer1&2	Rj11	24V drive, two connecters for each of the two drawers with open sensor
