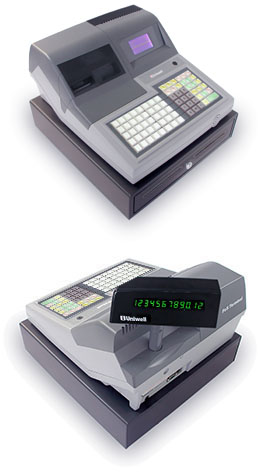

With 128 x 64 dot LCD + drop-in thermal printer(s) or dot matrix printer, EX-560/570/575-05 type are more versatile for any industries!
EX-560/575/570 series are quite different from the pack: LCD is Uniwell's original with incredible brightness and clearness and very wide view angle. It fits in any operational environment! Further, a choice of multi-lined items or single enlarged PLU display method and blue or white background color will meet various user's preference.
Rich information contents on LCD guides you through accurate operations not only during registration but also programming - easy to grasp registered items and make void/correction with scrolling function, to program a PLU with name, price, stock control, and other settings all at once (Complete PLU Programming). Once learned, you may do away with programming manual!
Choice of printer meets various industries' needs - durable 2 station dot matrix printers, quiet and fast 1 station/2 station thermal printers.
Highlights of 05 type are Complete Quantity Discount table, Coupon function, Barcode print function, Scanner/Scale connection with price/weight embedded barcodes.
Further EX-560/575/570 series offer advanced memory functions, such as Amount Track, Customer File, optional ESF (Electronic Store & Forward, electronic journal data)
The standard interface allows communication with other EX terminals, slip printers, and one of the peripherals such as PC, scanner or cashless payment system, etc. or more when the optional interface installed.
EX-560: Dot Matrix Printer Model
2 sheet dot matrix printer, 3 lines/sec
Receipt/Journal: 24 columns/line
Validation: 55 columns/line
Paper roll: 44.5 ± 0.5 mm x Φ83 mm
EX-575/EX570: Thermal Printer Model
Thermal printer with an auto cutter and clamshell mechanism
EX-570: 2-sheet thermal printer, 21.3 lines/sec
EX-575: 1-sheet thermal printer, 26.7 lines/sec
Printing digit: 36 columns/line
Paper roll: 58 mm x Φ83 mm
Stroke key: 81 key positions / Flat key: 130 key positions
Front Display (LCD)
Blue mode LCD with white LED backlight (inversion) 21 columns x 8 lines, View Angle Adjustment: Max. 15 degrees
Rear Display (7segment LED)
12 digits numeric x 1 line (standard)
Selection of "with" or "without drawer"
370 (W) x 415 (D) x 196 (H) mm without drawer
405 (W) x 423 (D) x 297 (H) mm with drawer
IRC (Inter Register Communication)
- 32 ECRs
- PC communications with Tensai2000 via NA-700
- Flash reports and flash downloading
- 8 slip printers
EX-560/570/575-05 (Discontinued) Features
Scrolling display function with void
|A||RS485||Inter Register Communication, Slip printer|
|B||RS232C||One of: PC communication, Scanner, Scale, Thermal slip printer, RAM data transfer,
Journal data transfer
|C (Option)||RS232C||One of: PC communication, Scanner, Scale, Journal data transfer|
|D (Option)||RS232C||Same as ch-C port|
- Card Reader
- iButton for cashier sign-on and sign-off
- Optional memory board
- Optional interfaces board
